Hello, welcome to visit us, Shuangyang medical is a professional manufacturer Class III orthopaedic implants. 20+ years experience in R&D manufacturing. Professional overseas trading team is at your service for product solutions and market growth.
Product highlights
Anatomical Contour Design
* This promotes better stability and comfort, and reduces soft tissue irritation.
Low Profile
* Designed to be thin and low in profile to minimize palpability through the skin or oral mucosa.

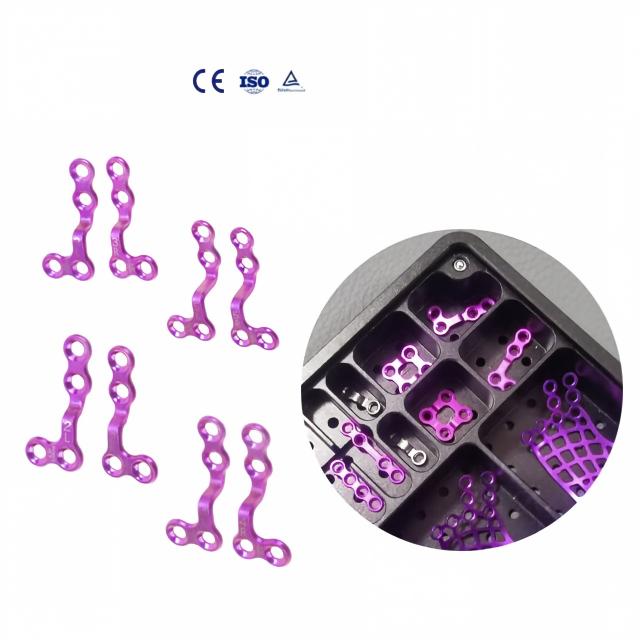

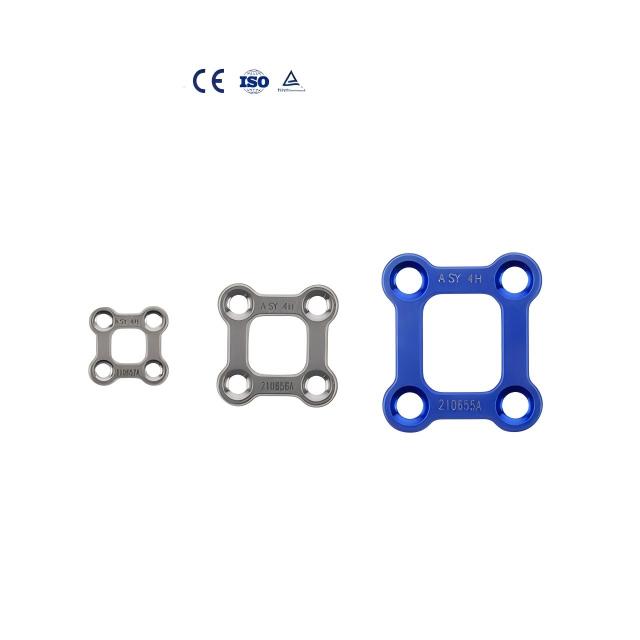

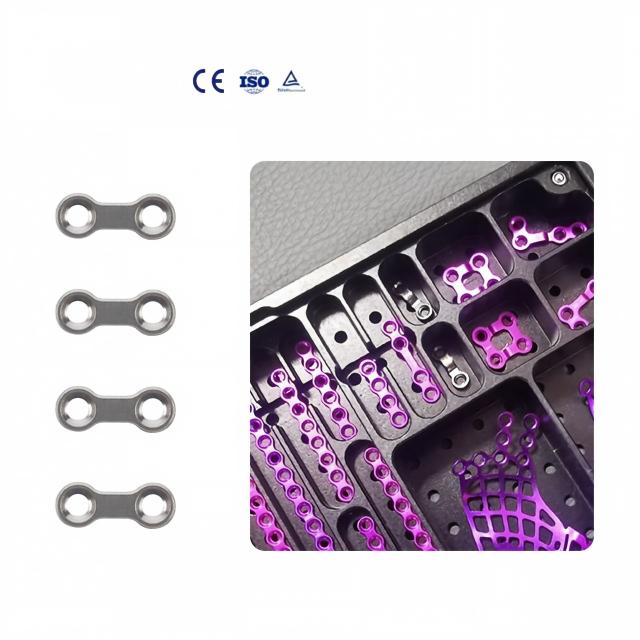

Multiple Hole Configurations
* Available in various hole counts and patterns (e.g., 2-hole, 4-hole, 6-hole, or more), allowing for versatile screw placement and fixation strength.
Screw Compatibility
* Compatible with 1.5 mm or 2.0 mm maxillofacial screws.
Customizable and Modular
* Some systems offer modular chin plates that can be cut or extended intraoperatively.

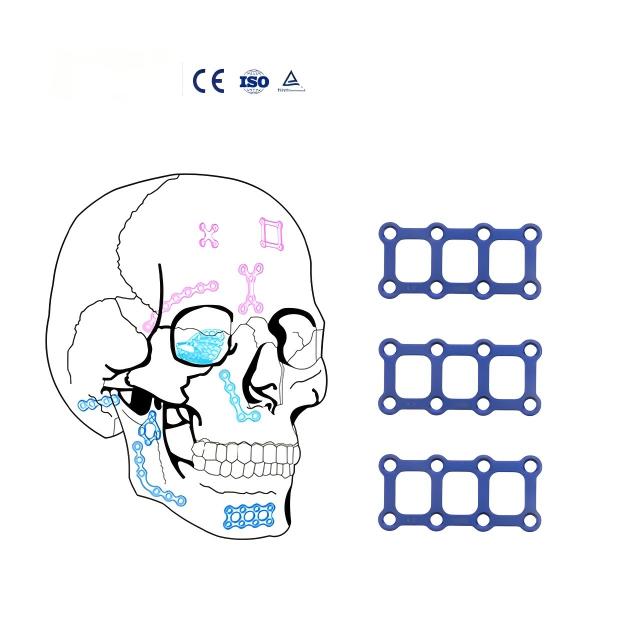

Maxillofacial Plastic Series
Indication: Facial plastic surgery is performed to reshape structures in the head and neck — typically the nose, ears, chin,cheekbones and neckline. People seeking this surgery may be motivated by a desire to reconstruct the face after an injury or disease or to change a feature present from birth. Or they may want to reverse the signs of aging, remove contour irregularities or make the features of the face appear in proportion with one another.
Maxillofacial Plastic Specifications：

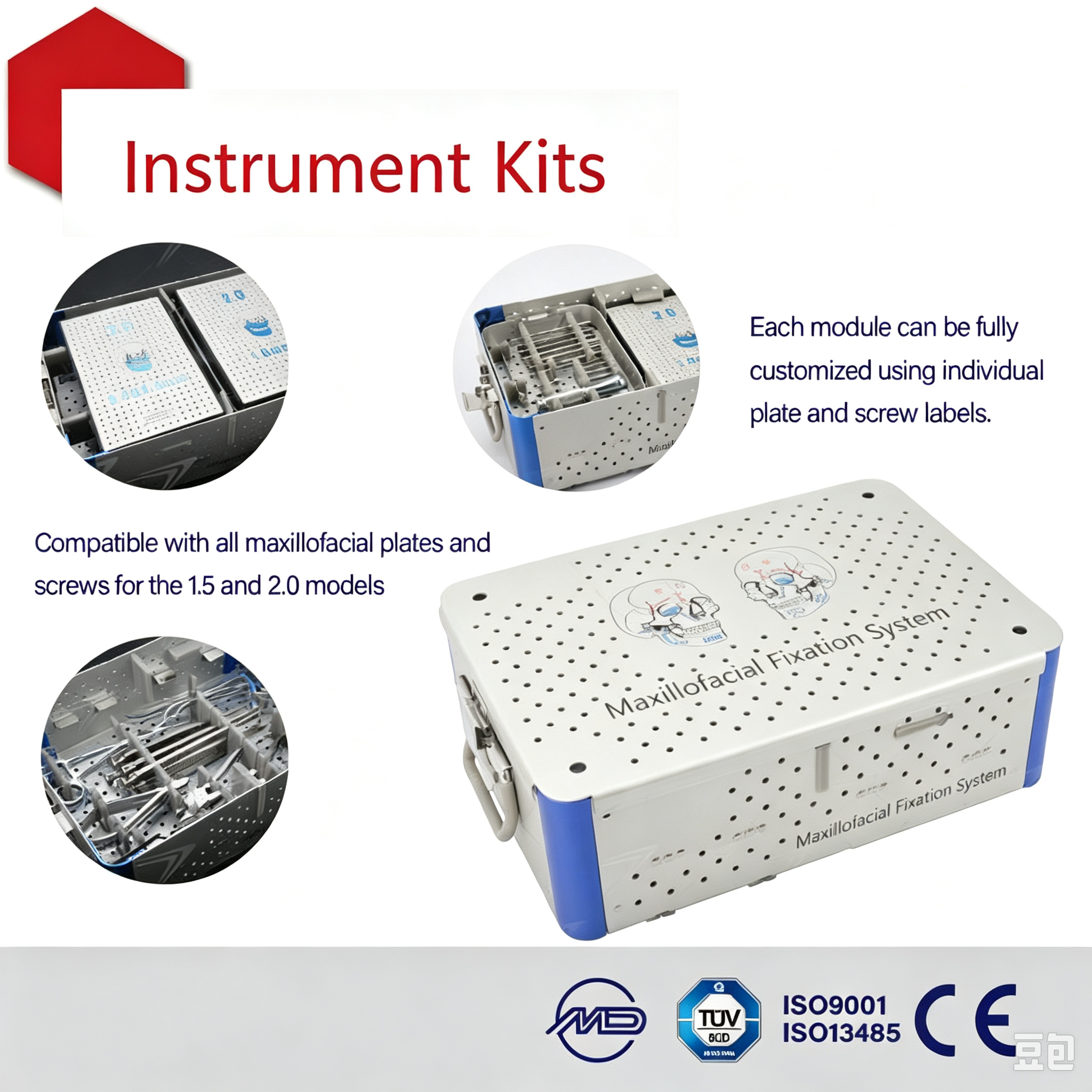

Maxillofacial Plastic Surgery Instrument Set
Matching Instruments
|
ltem No.
|
Specification
|
Quantity（pc）
|
|
50.01.001.00
|
Ф1.1x8.5mmx48mmMedical Drill
|
2
|
|
50.01.002.00
|
Ф1.6x12mmx48mmMedical Drill Bit
|
2
|
|
50.01.003.00
|
Straight quick coupling handle
|
1
|
|
50.01.004.00
|
SW0.5x2.8x95mmCross Head Screwdriver
|
2
|
|
50.01.005.00
|
Ф1.5Ф 1.5 Broken Nail Extractor
|
1
|
|
50.01.006.00
|
Ф 2.0 Broken Nail Extractor
|
1
|
|
50.01.013.00
|
Φ1.1/Ф1.6Universal Drill Guide
|
1
|
|
50.01.007.00
|
Φ1.1/Ф1.6Universal Drill Guide(locking)
|
1
|
|
50.01.008.00
|
0~30mm Depth Gauge
|
1
|
Optional Instruments
|
ltem No.
|
Specification
|
Matching Instruments
|
|
59.01.070.00
|
Φ1.0*6*48mm
|
Drill bit
|
|
59.01.071.00
|
Φ1.0*6*65mm
|
|
|
59.01.008.00
|
Φ1.05*6*48mm
|
|
|
59.01.051.00
|
Φ1.05*8.5*65mm
|
|
|
59.01.059.00
|
Φ1.1*4*48mm
|
|
|
59.01.060.00
|
Φ1.1*5*48mm
|
|
|
59.01.061.00
|
Φ1.1*6*48mm
|
|
|
59.01.061.00
|
Φ1.1*6*48mm
|
|
|
59.01.074.00
|
Φ1.1*6*65mm
|
|
|
59.01.076.00
|
Φ1.1*12*65mm
|
|
|
59.01.079.00
|
Φ1.5*8*48mm
|
|
|
59.01.080.00
|
Φ1.5*8*65mm
|
|
|
59.01.082.00
|
Φ1.6*8*48mm
|
|
|
59.01.072.00
|
Φ1.0*6*65mm
|
J-Latch
|
|
59.01.055.00
|
Φ1.05*8.5*65mm
|
|
|
59.01.075.00
|
Φ1.1*6*65mm
|
|
|
59.01.077.00
|
Φ1.1*12*65mm
|
|
|
55.01.002.00
|
Φ1.2*8.5*65mm
|
|
|
59.01.078.00
|
Φ1.4*8*65mm
|
|
|
59.01.081.00
|
Φ1.5*8*65mm
|
|
|
59.01.083.00
|
Φ1.6*8*65mm
|
|
|
59.01.056.00
|
Φ1.6*12*65mm
|
|
|
59.01.016.00
|
Φ1.1*9*75mm
|
|
|
59.01.048.17
|
Φ1.6*22*105mm
|
|
|
50.35.001.00
|
For Φ1.6 IMF screw
|
IMF SW3.0 screwdriver
|
|
50.01.060.00
|
For screwing in Φ1.5 screw
|
Cross-fit screwdriver rod
|
|
50.01.059.00
|
For removing Φ1.5 screw
|
|
|
50.01.061.00
|
For Φ2.0 screw
|
|
|
50.01.058.00
|
For Φ1.5 & Φ2.0 screw
|
Straight handlec
|
|
59.01.047.00
|
For Φ1.5 screw
|
Cross-fit screwdriver rod
|
